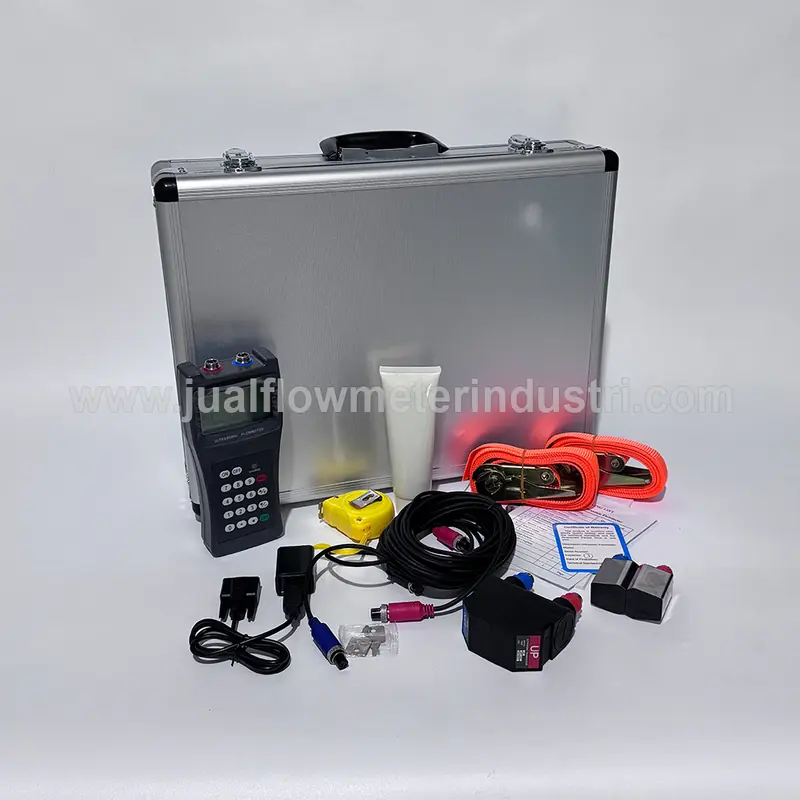

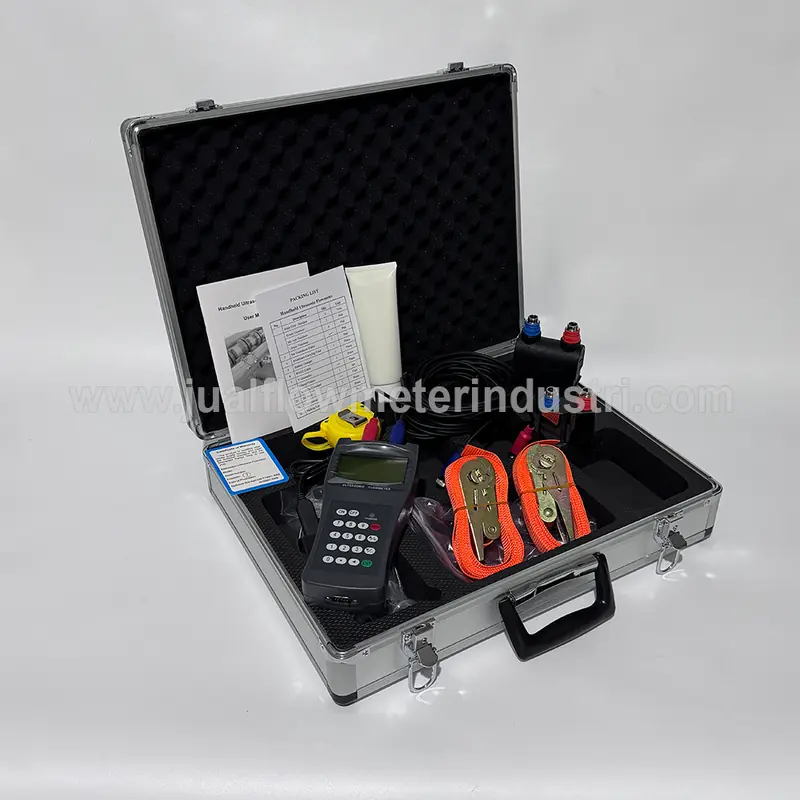

Ultrasonic Flow Meter TDS 100H
Merek Gopas
Ultrasonic Flow Meter TDS-100H adalah alat ukur laju aliran cairan portabel yang transdusernya dipasang dengan cara dijepit (clamp-on) di luar pipa tanpa perlu memotong atau melubangi pipa tersebut.
Deskripsi
The TDS-100H flowmeter can be virtually applied to a wide range of measurements. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc. Because the instrument and transducers are non-contacting and have no moving parts, the flow meter can not be affected by system pressure, fouling or wear. Standard transducers are rated to 110 ºC. Higher temperatures can be accommodated. For further information, please consult the manufacturer for assistance.
Spesifikasi Teknis
- Ultrasonic Flow Meter TDS-100H
- Linearity : 0.5%
- Repeatability : 0.2%
- Accuracy : ± 1% of reading at rates>0.2 mps
- Response Time : 0-999 seconds, User-Configurable
- Velocity : ± 32 m/s
- Type Sensor S2 : DN15-100mm ( 1/2-4 inch )
- M2 : DN50-700mm ( 2-28 inch )
- L2 : DN300-6000 ( 12-240 inch )
- Security : Setup Values Modification Lockout Access code needs unlocking
- Rate Units : Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Millon USA Gallons, User Configurable
- Totalizer : 7 -digit totals For net,Positive and negativeflow respectively
- Liguid Types : Virtually all liquids
- Security : Setup Values Modification Lockout Access code needs unlocking
- Display : 4x8 Chinese Characters or 4x16 English Letters
- Communication Interface : RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of theFuji ultrasonic flow meter, User protocols can be made on enquiry
- Transducers : Model M1 for Standard, other 3models for optional
- Transducers Cord Length : Standard 2x10 meter, optional 2x 500 meters
- Power Supply : 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation, 100V-240VAC for the charger
- Data Logger : Built-in data logger can store over 2000 lines of data
- Manual Totalizer : 7-digit press-key-to-go totalizer for calibration
- Housing Material : ABS
- Case Size : 100x66x20mm
- Handset Weight : 514g (1,2 lbs) With batteries
Aplikasi
- Air & Pengolahan Air: Air minum, air bersih, air limbah, air keran, air laut, hingga air deionisasi untuk industri semikonduktor.
- Cairan Industri & Kimia: Larutan asam/kimia, cairan korosif, alkohol, air gula, susu, dan cairan pada bengkel cat.
- Minyak & Energi: Oli, minyak pelumas, minyak mentah (crude oil), bensin (gasoline), dan solar.
