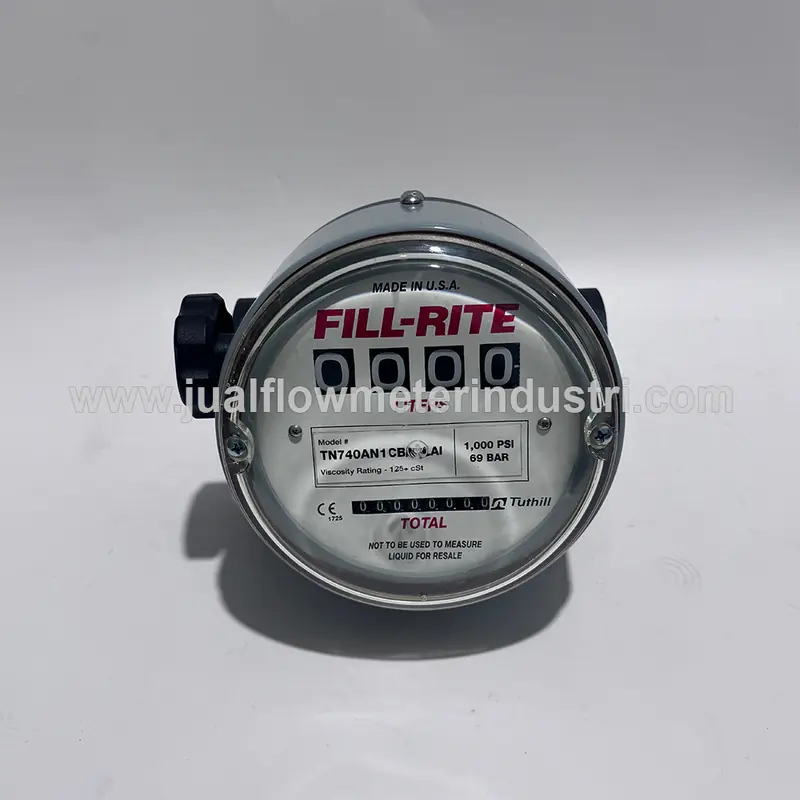

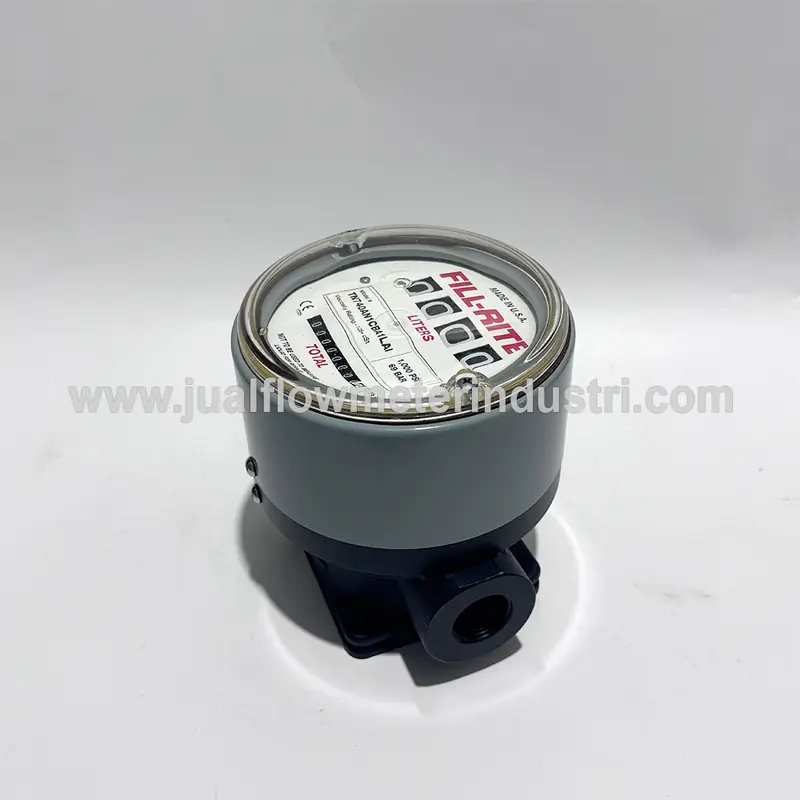

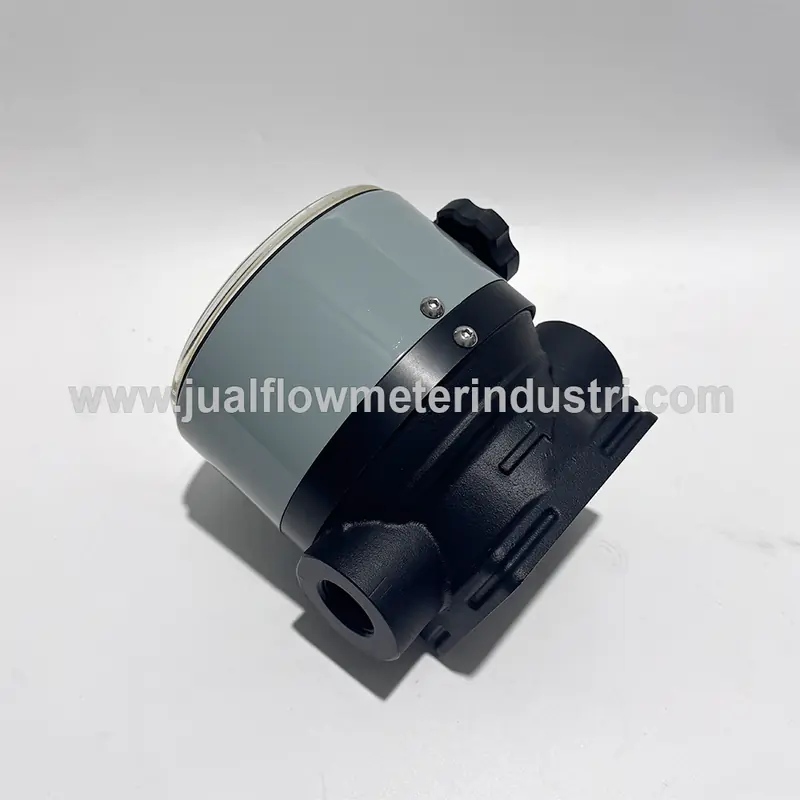

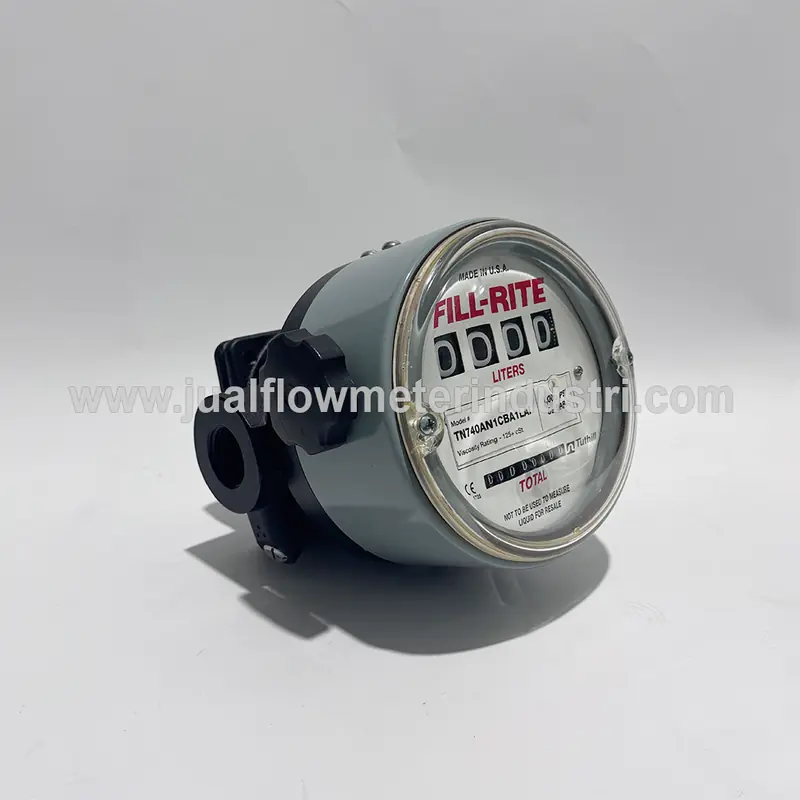

Flowmeter Fill Rite TN740 Size 1 Inch
Merek Fill-Rite
Flowmeter Fill-Rite TN740 adalah pengukur aliran (flow meter) mekanis 4-digit yang dirancang khusus untuk aplikasi tekanan tinggi dan viskositas tinggi.
Deskripsi
* Reliable Technology – dependable positive displacement, nutating disc technology provides trusted accuracy in non-custody transfer applications
* Versatile Compatibility – engineered with a high-pressure metering chamber for high viscosity oils and ideal for transferring heavy liquids quickly and safely
* Durable Construction – built to last with an anodized aluminum case and resin metering chamber, designed to withstand the toughest environments
* High-Pressure Applications — ideal for high-pressure automotive fluid distribution systems and lube trucks where heavy fuel oils, hydraulic oils, and lubricating oils are transferred
Spesifikasi Teknis
- Model : TN740AN1CBA1LAI
- Flowrate Range (GPM) : 2-38 LPM
- Power Type : Mechanical
- Compatible Fluids : Gear Oils, Motor Oils
- Inlet Size / Connection / Thread : 1 " / Female / NPT
- Outlet Size / Connection / Thread : 1 " / Female / NPT
- Operating Temperature Range (°F) : -15 - 180°F / -26 - 82°C
- Max Operating Pressure (PSI) : 1000
- Accuracy (+/- %) : 1 %
- Repeatability (+/- %) : 0.25 %
- Display Type : Mechanical
- Display Digits : 4
- Pulse Rate : --
- Power Source : Mechanical
- Totalizer : Yes
- Pulse Output : No
Aplikasi
- • Sistem distribusi cairan otomotif bertekanan tinggi.
- • Truk pelumas (lube trucks) untuk transfer oli bahan bakar berat, oli hidrolik, dan oli pelumas.
