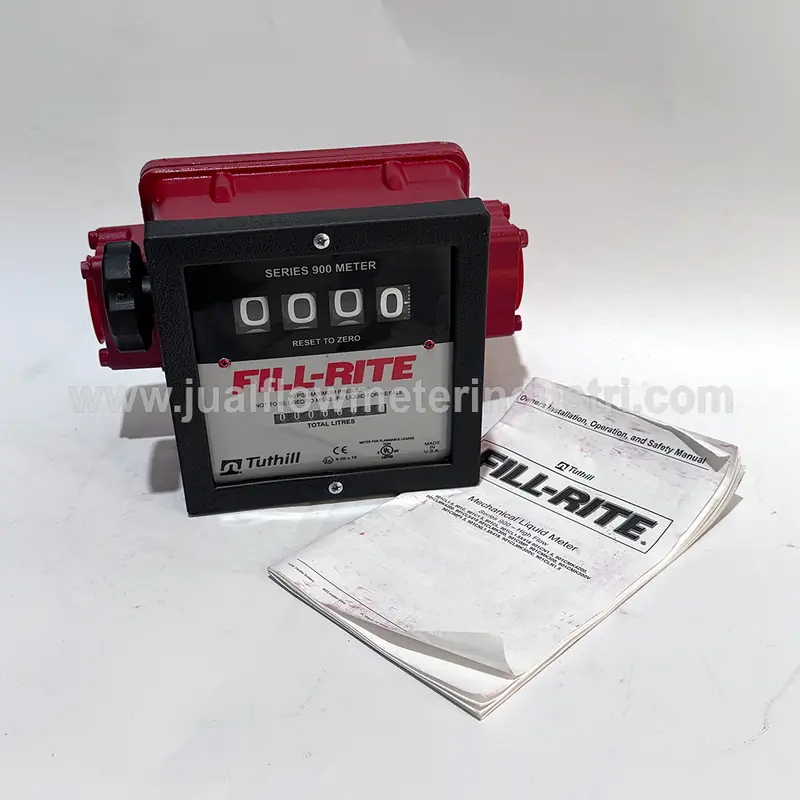

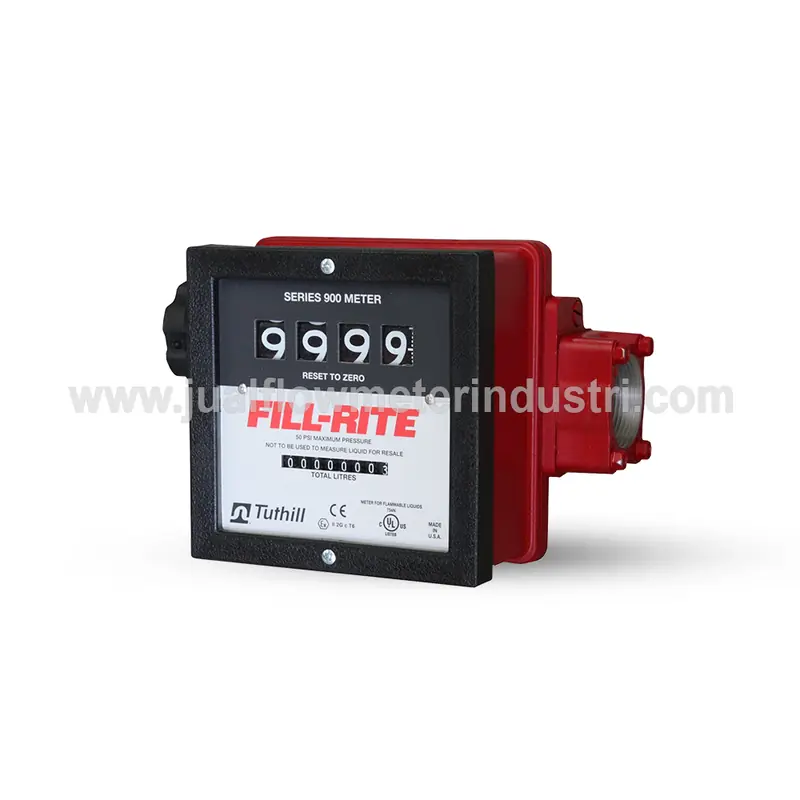

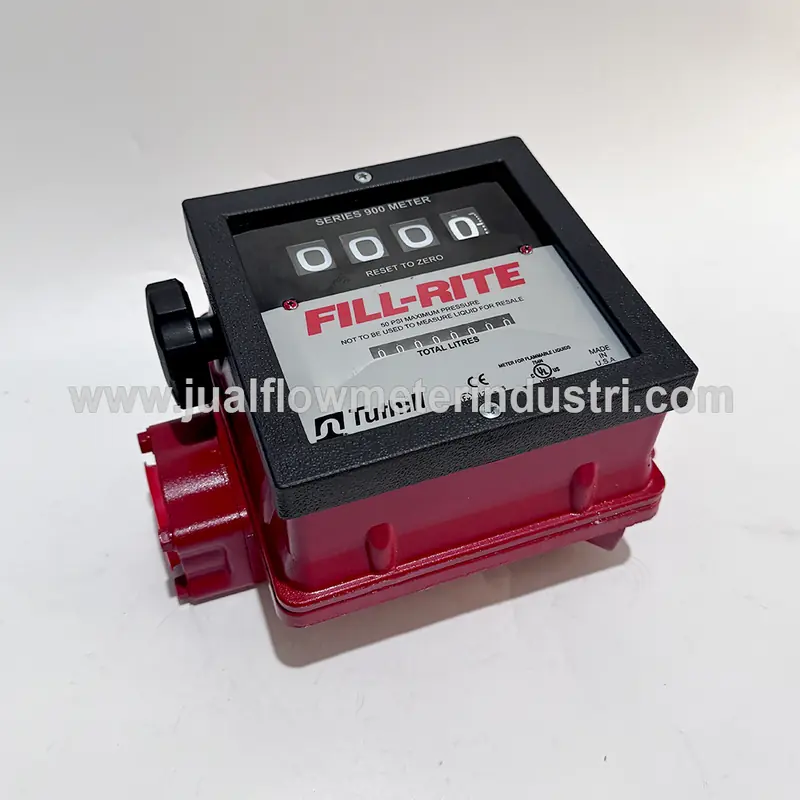

Flow Meter Fill Rite Series 900C Size 1,5 Inch
FLOWMETERFILLRITESERIES900CSIZE15

Flow Meter Fill Rite Series 900C Size 1,5 Inch

Merek Fill-Rite

Flowmeter FILL RITE Series 900 adalah meteran mekanis 4-digit untuk transfer bahan bakar. Meteran ini dilengkapi dengan ulir NPT dan dirancang untuk mengukur aliran 6-40 galon per menit dengan tingkat akurasi +/- 2%. Model ini tidak mencakup komponen instalasi tambahan.

Pesan Sekarang
Deskripsi

Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
Extreme Accuracy — measures fuel within +/- 2% accuracy, ensuring your record-keeping is precise as possible
High-Volume Applications – 4-digit counter registers flow rates between 6-40 GPM and up to 999.9 gallons per batch, perfect for heavy equipment with large fuel tanks
Lifetime Tracking — 7-digit non-resettable counter tracks total volume transferred over lifetime of meter
Fluid Compatibility — designed for daily use with diesel, gasoline, kerosene, mineral Spirits, heptane, hexane

Spesifikasi Teknis
  • Features : 4 Wheel Mechanical Flow Meter
  • Accuracy : ± 2%
  • Flow Rate : 6 to 40 GPM ( 20 to 151 LPM )
  • Pressure rating ( PSI ) : 50 (3.4 bar )
  • Resetable cumulative totalizer : 999.9 Gallons / 9,999 Liter
  • Master totalizer : 999,999.9 Gallons / 9,999,999 Liter
  • Construction : Aluminium
  • Large easy to read numbers : Yes
  • Plexible ports for horizontal or vertical positioning:Yes
  • 360° Positionable Ports:-
  • Approvals:UL/CSA Listed
  • 20 Calibration Settings :-
  • Powered by two AA batteries:-
  • Gallon or liter Registration:Yes
  • Painted black for instalation on eitherHeavy Duty Standard Duty pumps except FR4210 ;comes with all fitting : YES
  • 1'' Port : YES
  • 1-½" Ports : YES
Aplikasi
  • Cocok untuk pengisian internal (Bukan untuk jual beli), seperti kerosene, minyak, bensin, premium maupun light dan heavy oil
