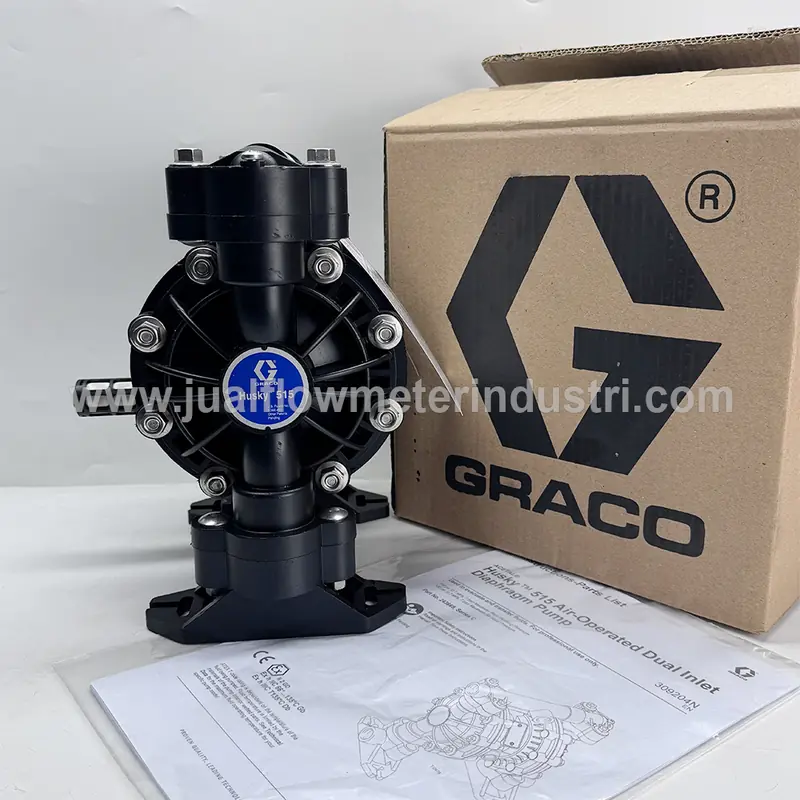

Diaphragm Pump Graco Husky 515 Size 1/2 Inch
Merek Graco
Graco Husky 515 adalah pompa diafragma ganda bertenaga udara (pneumatik) berukuran 1/2 inci yang dirancang untuk efisiensi tinggi dalam pemindahan fluida industri.
Deskripsi
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
• Centre and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks
• Operates on as little as 1.4 bar (0.14 MPa, 20 psi)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 56.7 lpm (15 gpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance
Spesifikasi Teknis
- Part Number: 243669
- Air Exhaust Port Size (in) : 3/8
- Air Exhaust Port Thread Gender : Female
- Air Exhaust Port Thread Type : NPT
- Air Inlet Size (in) : 1/4
- Air Inlet Thread Gender : Female
- Air Inlet Thread Type : NPT
- Application : Industrial
- Ball Material : Buna-N
- Diaphragm Material : Buna-N
- Fluid Section Material : Acetal
- For Use With : Oil, Water, Anti-freeze, Washer Fluid
- Manifold O-Ring Material : PTFE
- Material : Acetal
- Maximum Air Pressure (bar) : 7
- Maximum Air Pressure (psi) : 100
- Maximum Cycle Rate (cpm) : 400
- Maximum Flow Rate (l/min) : 56.8
- Maximum Fluid Pressure (bar) : 7
- Maximum Fluid Pressure (psi) : 100
- Maximum Solid Size (cm) : 0.2383
- Maximum Solid Size (mm) : 2.4
- Model : Husky
- Power Source : Air
- Pump Ratio : 1:1
- Type : Pneumatic Diaphragm Pump
- Wetted Material : Groundable Acetal, Buna-N, PTFE
Aplikasi
- Husky 515 dirancang untuk menangani hampir semua jenis fluida kimia dan sangat ideal untuk pekerjaan kecil di atas kapal, seperti menakar (dosing) bahan kimia ke dalam drum.
