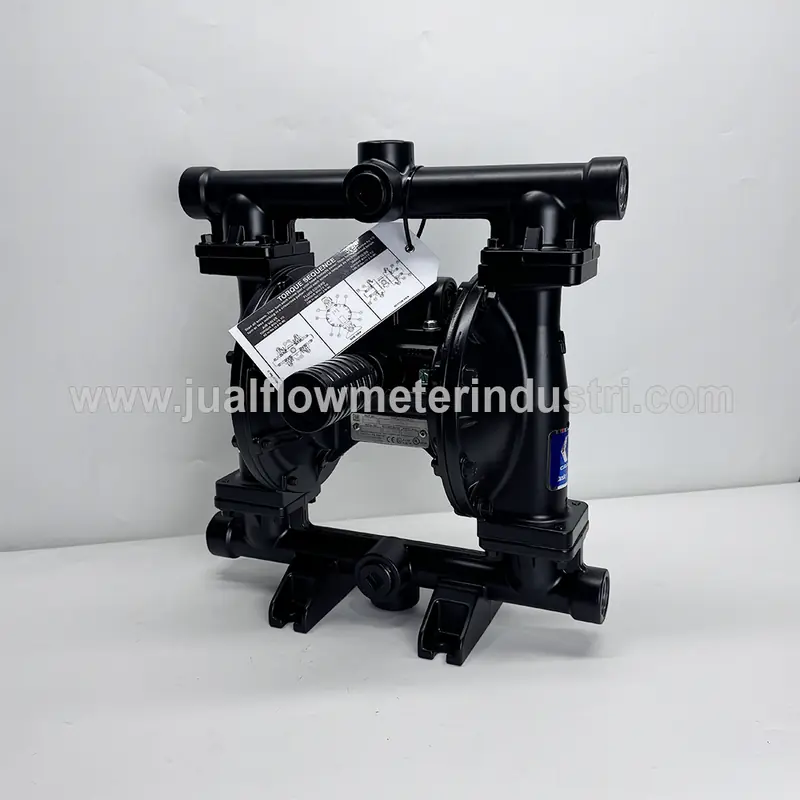

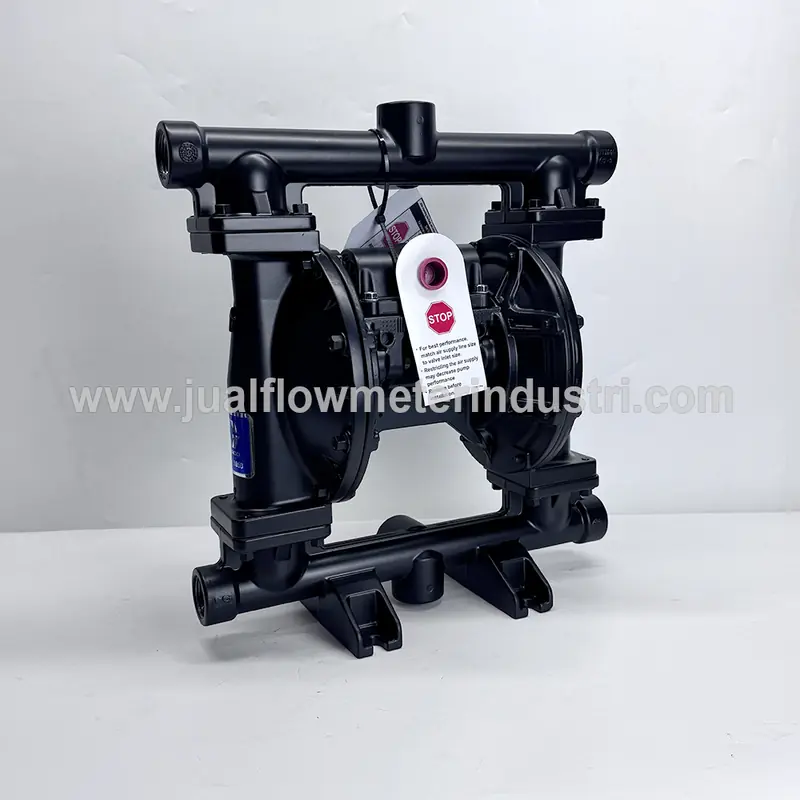

Diaphragm Pump Graco Husky 1050 Size 1 Inch
DIAPHRAGMPUMPGRACOHUSKY1050SIZE1I

Diaphragm Pump Graco Husky 1050 Size 1 Inch

Merek Graco

Graco Husky 1050 adalah pompa diafragma ganda (double diaphragm pump) berukuran 1 inci yang dioperasikan dengan udara (pneumatik), dirancang untuk perpindahan fluida industri yang efisien dengan laju aliran maksimum hingga 189 liter per menit (50 gpm).

Pesan Sekarang
Deskripsi

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
• Longer Diaphragm Life – Up to 5x longer diaphragm life for less maintenance and downtime
• Modular Air Valve – Stall-free, low pulsation operation provides smooth and rapid changeover
• One-Piece Center Section – Eliminates air leaks for more efficient operation
• Four-Bolt Joint Design – Bolted design provides even sealing pressure for leak-free operation
• Multiple Ports – Increased number of ports for installation flexibility
• Optional Features – DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
• Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
• 30% more efficient than the market leader
• 20% increase in fluid flow compared to the Husky 1040

Spesifikasi Teknis
  • Part Number: 647016
  • Air Exhaust Port Size (in) : 3/4
  • Air Exhaust Port Thread Gender : Female
  • Air Exhaust Port Thread Type : NPT
  • Air Inlet Size (in) : 1/2
  • Air Inlet Thread Gender : Female
  • Air Inlet Thread Type : NPT
  • Application : Industrial
  • Ball Material : Acetal
  • Centre Section Material : Aluminium
  • Diaphragm Material : TPE (Hytrel)
  • Fluid Inlet Size : 1 Inch
  • Fluid Inlet Size (mm) : 25.4
  • Fluid Inlet Thread Gender : Female
  • Fluid Inlet Thread Type : NPT
  • Fluid Outlet Size : 1 Inch
  • Fluid Outlet Size (mm) : 25.4
  • Fluid Outlet Thread Gender : Female
  • Fluid Outlet Thread Type : NPT
  • Fluid Section Material : Aluminium
  • For Use With : Water/anti-freeze/fuel transfer
  • Manifold O-Ring Material : None
  • Material : Aluminium
  • Maximum Air Pressure (bar) : 7
  • Maximum Air Pressure (psi) : 100
  • Maximum Cycle Rate (cpm) : 280
  • Maximum Flow Rate (l/min) : 189
  • Maximum Fluid Pressure (bar) : 7
  • Maximum Fluid Pressure (psi) : 100
  • Maximum Operating Temperature (°C) : 66
  • Maximum Solid Size (cm) : 0.3175
  • Maximum Solid Size (mm) : 3.175
  • Model : Husky
  • Power Source : Air
  • Seat Material : TPE (Hytrel)
  • Standards Met : UL
  • Type : Pneumatic Diaphragm Pump
  • Wetted Material : Aluminium, TPE, Acetal
Aplikasi
  • Cocok untuk pemindahan air, antibeku (antifreeze), bahan bakar, oli motor, cairan hidrolik, deterjen, hingga limbah cair.
